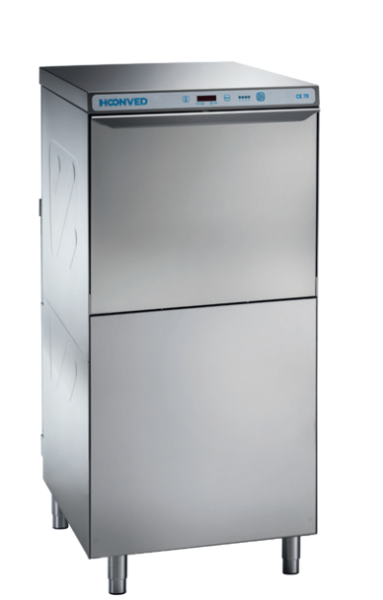

The Hoonved CE78 BT is the ergonomic floor-standing version of the CE68 BT and is specifically designed for the demanding requirements of pastry shops, ice cream parlors, gastronomy laboratories, bakeries, and catering businesses with high daily washing volumes. The significantly increased height with a total machine height of 1,325 mm makes loading and unloading particularly back-friendly – an important advantage for businesses with long shifts and constant rack changes.
The external dimensions are 600 × 695 × 1,325 mm (W × D × H). With the generous 500 × 600 mm rack and a usable height of 400 mm, plates, dishes, trays, and containers of all shapes and sizes can be cleaned effortlessly. When used as a dishwasher, the CE78 BT accommodates up to 24 deep plates / 26 flat plates / 12 pizza plates Ø 48 cm – representing +30% capacity compared to conventional machines with a 500 × 500 mm standard rack.
The self-supporting structure made of satin-finished AISI 18/10 stainless steel and the rotating wash and rinse arms made of AISI 304 stainless steel (top and bottom) guarantee durable construction and flawless washing results. The boiler and heating elements are made of corrosion-resistant Incoloy steel – extending service life and ensuring consistent heating performance for years.
The large tank filter is easy to remove and clean. Electronic temperature control via electronic sensors, together with the continuous display of all important operating parameters on the digital display, guarantees the correct wash and rinse temperatures at all times.
A key feature of the CE78 BT is the standard Break-Tank system (BT) with atmospheric boiler. It hydraulically separates the drinking water supply from the wash water completely – enabling the machine to comply with the strictest requirements for safety-sensitive applications (CAT-5 compliant) and making it particularly suitable for food processing operations.
With a 7,000 W boiler heater and a powerful 830 W wash pump, the CE78 BT quickly reaches the optimal washing temperature and consistently delivers excellent cleaning results even under intensive use. The 4 pre-programmed wash cycles (120 / 180 / 240 / 480 sec) can be individually adjusted in duration and temperature – allowing the machine to cover everything from a quick glass cycle to an intensive program for heavily soiled baking trays and mixing bowls.
The Multipower connection allows flexible connection to 400 V three-phase power (3N), 230 V three-phase power (3N), or 230 V single-phase power – enabling the CE78 BT to be installed in virtually any environment without requiring special electrical preparations.
Peristaltic detergent and rinse aid dispensers are included as standard, ensuring precise and constant chemical dosing. The machine also offers optional Wi-Fi connectivity for remote monitoring and maintenance.
💡 CE78 BT vs. CE68 BT: Both machines are technically identical (same heating performance, same rack size, same Multipower connection). The CE78 BT offers the decisive ergonomic advantage with its significantly higher construction (1,325 mm instead of 830 mm): loading and unloading without bending over – ideal for businesses with all-day washing operations and long shifts.
Optionally, the CE78 BT is available as a premium version with a factory-installed drain pump and integrated water softener – ideal for installations with elevated drainage systems and in regions with water hardness above 10 °fH.
Scope of Delivery
- 1× Hoonved CE78 BT multipurpose dishwasher in floor-standing design
- 1× wire base rack 500 × 600 mm (H39526)
- 1× rack for 24 plates (H39527)
- 1× cutlery holder for 8 pieces (H25134)
- 1× stainless steel insert for baking trays (H37459)
- 1× stainless steel rack grid (530275)
- Cladded rear panel
- Operating manual (multilingual)
- Standard peristaltic detergent and rinse aid dispensers
- Standard Break-Tank system
Technical Data
| Feature |
Value |
| External dimensions (W × D × H) |
600 × 695 × 1,325 mm |
| Space requirement with open door |
1,150 mm |
| Usable height |
400 mm |
| Rack dimensions |
500 × 600 mm |
| Wash and rinse system |
Independent overlapping rotating wash and rinse arms, AISI 304 stainless steel |
| Cycle duration |
120 / 180 / 240 / 480 sec |
| Theoretical output |
30 racks/h |
| Control panel |
Digital display |
| Construction |
Single-wall, satin-finished AISI 18/10 stainless steel |
| Interior |
Self-cleaning |
| Boiler & heating elements |
Corrosion-resistant Incoloy steel |
| Filtration system |
Large removable tank filter + pump suction filter |
| Electrical connection |
Multipower 400 V 3N ~ 50 Hz / 230 V 3N ~ 50 Hz / 230 V ~ 50 Hz |
| Total connected load |
7,830 W |
| Boiler heater |
7,000 W |
| Tank heater |
2,000 W |
| Wash pump |
830 W |
| Tank volume |
23 l |
| Boiler volume |
7.5 l |
| Water connection |
2–4 bar, Ø 3/4″ G |
| Water consumption per cycle |
3.5 l |
| Drain connection |
Ø 31 mm |
| Sound pressure level |
< 70 dB(A) |
| Detergent dispenser |
Standard (peristaltic) |
| Rinse aid dispenser |
Standard (peristaltic) |
| Break-Tank system |
Standard (BT) |
| Wi-Fi connectivity |
Optional |
| Loading capacity (as dishwasher) |
24 deep / 26 flat plates / 12 pizza plates Ø 48 cm |
| Design |
Floor-standing design with ergonomic working height |
