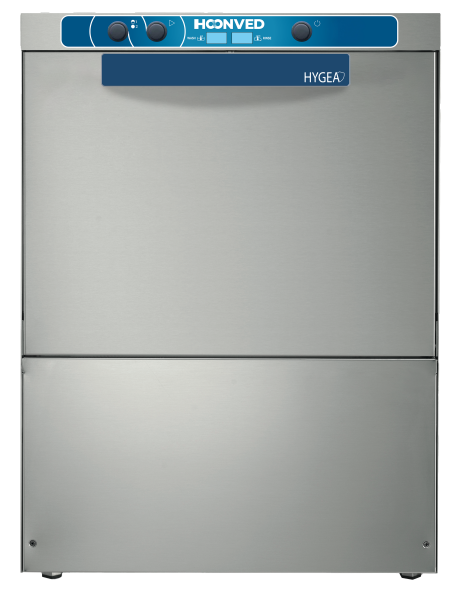

HOONVED Gastro Spülmaschine HY400

Número de artículo: MA-HOO-HYG-400
EAN / GTIN: UHB060
#global.han#: UHB060
Categoría: Hygea
Fabricante: Hoonved Ali Group S.r.l.

Ausstattungsoptionen

Preis auf Anfrage

Leasing-Beispiel

24,96 € freibleibend

Monatliche Rate (60 Raten)

Preise exkl. MwSt.

weitere Leasing Raten anzeigen

Este producto tiene opciones. Seleccione las opciones que desee.

Descripción
Notificar cuando esté disponible de nuevo

The Hoonved Hygea HY 400 is the versatile undercounter dishwasher of the Hygea series and combines compact dimensions with the flexibility to accommodate both glasses, cups, and small dishes. With a 400 × 400 mm rack and a usable height of 280 mm, it reliably covers the typical requirements of bars, cafés, bistros, and small restaurants. The compact external dimensions of only 460 × 514 × 630 mm (W × D × H) allow seamless integration under any counter.

The Opti-Wash washing and rinsing system with double wash arms ensures complete coverage of the wash chamber – without dead zones – while reducing water, energy, and detergent consumption by up to 25% without compromising washing quality. The quick-connect system and removable nozzles also significantly simplify daily cleaning.

The wash chamber made of AISI 304 stainless steel and the double-wall door in satin finish ensure durability, hygiene, and easy cleaning. The drawn tank bottom with drainage slope and the double filtration system (polypropylene collection filter in the tank + pump suction filter) guarantee clean wash water and uncomplicated daily cleaning.

The electronic temperature control with constant display of tank and boiler temperatures, together with the integrated ThermoStop system, guarantees the correct rinse temperature at all times for hygienically flawless results. The magnetic microswitch automatically stops the wash cycle if the door is accidentally opened.

Peristaltic detergent and rinse aid dispensers are included as standard, ensuring precise and constant chemical dosing – preventing overdosing and ensuring consistently perfect washing results. The cladded rear panel allows the machine to be freely installed within the room.

Optionally, the HY 400 is available as a premium version with a factory-installed drain pump and integrated water softener – ideal for installations with elevated drainage systems and in regions with water hardness above 10 °fH.

Technical Data

Feature	Value
External dimensions (W × D × H)	460 × 514 × 630 mm
Space requirement with open door	830 mm
Usable height	280 mm
Rack dimensions	400 × 400 mm / Ø 400 mm
Wash and rinse system	Opti-Wash with double wash arm
Cycle duration	90 / 120 sec
Theoretical output	40 racks/h
Control panel	Electromechanical buttons + digital display
Construction	Single-wall
Wash chamber	AISI 304 stainless steel
Door	Double-wall, satin-finished AISI 304 stainless steel
Filtration system	Double (polypropylene collection filter + pump suction filter)
Electrical connection	220–240 V ~ 50 Hz
Total connected load	2,760 W
Boiler heater	2,500 W
Tank heater	2,000 W
Wash pump	260 W
Tank volume	10.5 l
Boiler volume	3 l
Water connection	2–4 bar, Ø 3/4″ G
Water consumption per cycle	2.6 l
Drain connection	Ø 28 mm
Sound pressure level	< 70 dB(A)
Detergent dispenser	Standard (peristaltic)
Rinse aid dispenser	Standard (peristaltic)
ThermoStop	Standard
Magnetic microswitch	Standard
